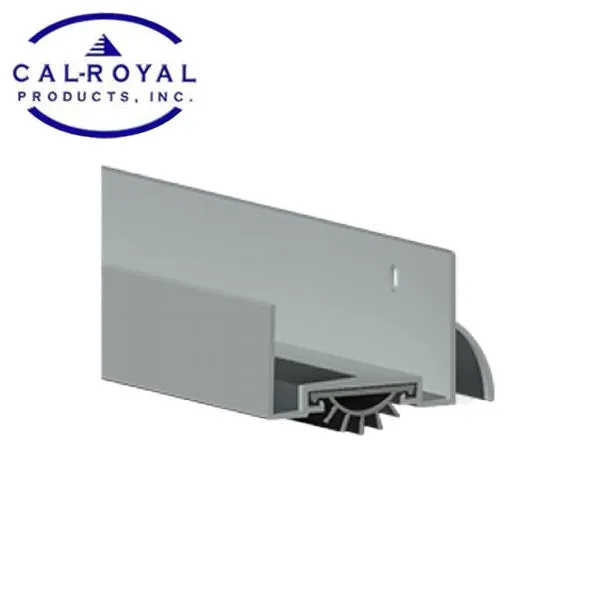

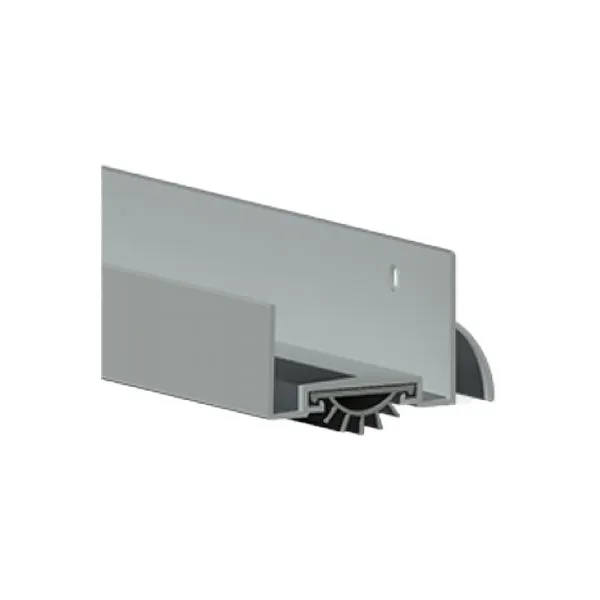

CRL-DSR-410-XX-AV
Our Door Weather Seal products are engineered and tested for durability and reliable performance to ensure that they meet or exceed the industry standards. These Cal-Royal Aluminum door shoes are applied to the underside of the door creating a barrier against dust, drafts, light, smoke, and fire without compromising the aesthetics of the door.
Features:
- Channels are punched with slotted holes for easy adjustment.
- It consists of Aluminum Channel with a flexible Vinyl Insert.
- Applied to the underside of a door.
- Comes with a rain drip design, which deflects water and seals the bottom of the door.
- Used on either Wood or Hollow Metal Doors
- Comes Standard with: #6 x ⅝” PPHSMS.
Specifications:
| Finish: | Mill Finish Aluminum with Vinyl Insert |
| Function: | Prevent Infiltration |
| Length Available: | 36", 48" |
| Applications: | Wood or Hollow Metal doors |
| Width: | 1 3/4" (44.4mm) |
| Profile Height: | 1 5/16" (33.3mm) |
| Total Height with Insert: | Approx. 1 9/16" (39.7mm) |
| Certifications: | UL Listed 10C |
